Physical Properties
| Category | Unit | LIGTEX™ L-5310 | |
|---|---|---|---|
| Specific Gravity | – | 1.2 | |
| Hardness【HDD】 (JIS 7215 Durometer) |
– | 82 ~ 84 | |
| Tensile Strength | MPa | 49 | |
| Tensile Elasticity | MPa | 1,000 | |
| Compressive Strength | ⊥ | MPa | 187 |
| ＝ | MPa | 77 | |
| Compressive Elasticity | ⊥ | MPa | 2,800 |
| ＝ | MPa | 1,030 | |
| Bending Strength | MPa | 68 | |
| Flexural Modulus | MPa | 1,800 | |
| Coefficient of Linear Thermal Expansion | ⊥ | /℃ | 7.9 × 10-5 |
| ＝ | /℃ | 5.1 × 10-5 | |
| Coefficient of Kinetic Friction(Against Steel) | without Lubrication | – | 0.10 ~ 0.18 |
| without Lubrication | – | 0.02 ~ 0.03 | |
| Deformation Temperature(1.80 N/mm2) | ℃ | 98.4 | |
| Heat Resistance Temperature | ℃ | 135 | |
| Water Absorption Ratio | ％ | 0.08 | |
Note: The figures in this table are typical measured values at our company, not guaranteed value.

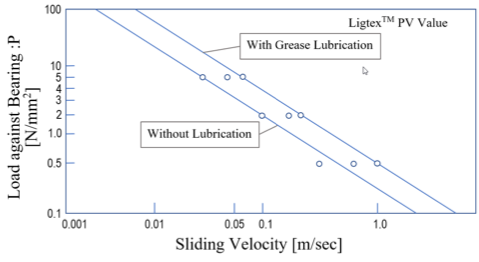

Friction Property
Ligtex™ has extremely low friction coefficient and it can achieve even smaller number if lubrication oil or oil/water mixture in the ratio of 1 : 1 is used. Below table is comparison of friction coefficient of Ligtex™ and that of conventional phenol product which is commonly.
| Dry | Oil : Water = 50:50 | Oil | |
|---|---|---|---|
| Ligtex™ | 0.1 ~ 0.2 | 0.02 | 0.02 |
| Phenol Product | 0.2 ~ 0.4 | 0.1 ~ 0.2 | 0.1 ~ 0.2 |
| Inspection Condition | |
|---|---|
| Adjacent material | SUS304 |
| Velocity | 1.0 m/sec 0.04 m/sec |
| Loading | 0.5 ~ 5 N/mm2 |
Characteristic
- Great Sliding Properties in chemicals, having High Chemical Resistance against both Acids and Alkalis.
- Longer Lifetime against Aggressive Chemicals in High Temperature.
- Extreme Low Friction Factor (0.02~0.03, with Lubrication) and Excellent Wear Resistance.
- Reliable and Stable Dimensions due to its Low Water and Oil Absorption.
Thermal Property
Low thermal conductivity of Ligtex™ Composite Material is needed to be considered in case of use in high temperature.
|
Temperature Range 25 ~ 150 ℃ Linear Expansion Coefficient Layer: Vertical Layer: Horizontal |
7.9 x 10-5/℃ 5.1 x 10-5/℃ |
|---|---|
|
Max Operating Temperature Min Operating Temperature |
130 ℃ -30 ℃ |
|
Max Operating Temperature In Lubrication Oil |
100 ℃ |
|
Thermal Conductivity Measured Temperature: 91℃ |
0.22 W/(m・K) |
